| Main Function | Copy, Print, Scan, Fax (Optional) |
|---|---|
| Writing Method | Semiconductor Laser |
| CPU | ARM Cortex-A9 (Dual Core) 1.2GHz |
| Memory | Standard 1GB (Max. 3GB) |
| SSD Capacity | SSD 32GB (Optional) / SSD 128GB (Optional) |
| Warm Up Time | 20 seconds or less |
| Paper Capacity, Standard | 600 sheets [1 x 500 sheets (Cassette) + 100 sheets (MPT)] |
| Paper Capacity, Maximum | 1,600 sheets (Main Unit + 2 x 500 sheets PF-471 x1 + MPT) |
| Paper Size, Cassette | Min. A5R – Max. A3 (Ledger) |
| Paper Size, MPT | Min. A6R – Max. A3 (Ledger) |
| Paper Weight, Cassette | 60 – 163 g/m² |
| Paper Weight, MPT | 45 – 256 g/m² |
| Duplex Printing | Paper size: A5R – A3; Paper weight: 60 – 163 g/m² |
| Output Capacity | Max. 250 sheets + 50 sheets with standard Job Separator |
| Control Panel | 4.3-inch Color Touch LCD Panel |
| Document Processor | Standard (Max. 50 sheets RADF Type) |
| Dimension (W x D x H) (Main Unit) | 590mm x 590mm x 688mm (with DP) |
| Weight (Main Unit) | Approx. 72 kg |
| Power Consumption (Standard configuration), Copy/Print Mode | 390W |
| Power Consumption (Standard configuration), Stand-by Mode | 55W |
| Power Consumption (Standard configuration), Energy Saver | 0.5W |
| Noise (ISO7779/ ISO9296), Copy/Print Mode | 49dB(A) |
| Noise (ISO7779/ ISO9296), Stand-by Mode | 34dB(A) |
| Print Speed (A4) (Mono) | 25 ppm |
|---|---|
| Resolution | 600 x 600 dpi; 1,200 x 1,200 dpi |
| PDL | PRESCRIBE, PCL6, KPDL3 (Postscript 3 compatible), XPS, PDF Direct Print Ver. 1.7 |
| First Print Out Time (Mono) | 5.8 seconds |
| Network Printing | TCP/IP, NetBEUI, FTP, Port 9100, LPR, IPP, IPP over SSL, WSD Print, Apple Bonjour |
| Operating System Supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Apple Macintosh OS X 10.5 or later; Linux |

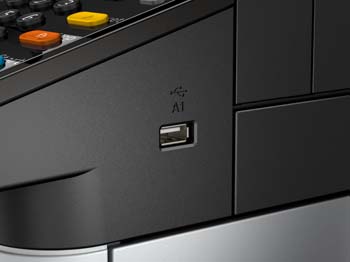

| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x2; NFC TAGx1; 802.11 b/g/n/Wireless LAN/WiFi Direct (Optional) |
| USB Memory Printing Format | TIFF, JPEG, PDF, XPS, Open XPS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print |
| Copy Speed (A4) Mono | 25 cpm |
|---|---|
| Copy Size | Max. A3 (Ledger) – Min. A6R |
| Resolution | 600 x 600 dpi |
| First Copy Time (Mono) | 5.8 seconds |
| Zoom Ratio, Manual | 25% – 400% (1% per Step) |
| Zoom Ratio, Pre-defined | 5R5E |
| Multiple Copy | 1 – 999 |
| Scanning Speed (A4) 300dpi, Simplex (Mono/Color) | 50/50 ipm |
|---|---|
| Scanning Speed (A4) 300dpi, Duplex (Mono/Color) | 16/16 ipm |
| Color Selection | Auto Color (Color/Gray); Auto Color (Color/B&W); Full Color; Grayscale; Black & White |
| Resolution | 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi |
| File Format | TIFF, JPEG, XPS, OpenXPS, PDF (High-compression PDF) |
| Image Type Mode | Text, Photo, Text + Photo, Light Text (Fine Line) |
| Transmission Type | Scan to SMB; Scan to E-mail (SMTP, SMTP over SSL); Scan to FTP or FTP over SSL; Scan to USB; TWAIN Scan; WSD Scan; WIA Scan |
| Address Storage | 200 addresses (Common address list), 50 groups (Group address list) |
| Fax Functions (Optional) | |
| Original Size | Max. A3 (Ledger) – Min. A5 (Statement) |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | 33.6 kbps |
| Memory | 12MB |
| Network FAX | Yes |
| Items | Description |
|---|---|
| Paper Feeder | PF-470: 500 sheets x1; PF-471: 500 sheets x2 |
| Fax System | Fax System 13 |
| Storage Device | HD-6: SSD 32GB; HD-7: SSD 128GB |
| Data Security | Data Security Kit(E) |
| Card Authentication | Card Authentication Kit(B) |
| Gigabit Ethernet Board | IB-50: For Additional Network |
| Wireless LAN Interface | IB-36 (802.11 b/g/n/Wireless LAN/WiFi Direct) |
| Items | Description |
|---|---|
| Toner Kit | TK-6110 |
| Maintenance Kit | MK-6119; DP: MK-6110 |
